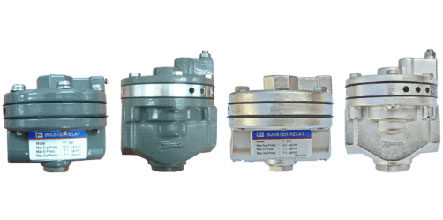

YT-300, YT-310 Volume Booster

Volume booster YT-300 and YT-310 makes the valve function’s speed fast with providing large air flow rate to the actuator.

Features

  • Speed and accuracy is excellent with supplying air pressure at the rate of 1:1 steadily.
  • It makes to improve the stability with control of By-pass.
  • It is an acute reflection of the change of signal pressure.
  • It has a fixed deadband because this is controlled by the seat-to-seat dimension of the supply and exhaust plugs.

Specifications

Item.Type
YT-300
YT-310
Max.Supply Pressure
10kgf/cm2(142psi)
Max.Output Pressure
7kgf/cm2(100psi)
10kgf/cm2(142psi)
In/Output Pressure Ratio
1:1
Flow Capacity(Cv)
1.02
4.98
In/Output Connection
PT(NPT)1/4
(NPT)3/4
Signal Connection
PT(NPT)1/4
Port Size
1/4″
1/2″
Linearity
±1%(F.S.)
Ambient Temp
-20~70°C (-4~158°F)
Weight
0.5kg(1.1lb)
2.3kg(5.1lb)
