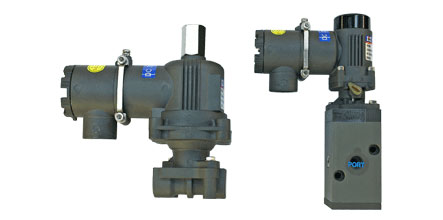

YT-700 Solenoid Valve

Solenoid valve YT-700 operates opening and shutting by electrical signal of AC or DC and has explosion-proof structure.

Features

  • It is not necessary to supply lubricating oil due to special O-ring.
  • Replacement is easy to design the coil of AC, DC is applicable for same Enclosure.
  • Backing spring is not necessary due to usage of Balance Spool type.
  • Operating test is possible when the power source is cutoff, because Manual button is attached.

Specifications

Item.Type
YT-700
Max.Supply Pressure
3 Way
4 Way
0~4kgf/cm2, 0~7kgf/cm2
1.0~10kgf/cm2
Rating Current
AC 220V
100mA
63mA
AC 110V
160mA
70mA
DC 24V
290mA
160mA
Explosion Proof
ExdIICT6
Connection Type
PT(NPT) 1/4
Conduit
PF1/2(G1/2)
