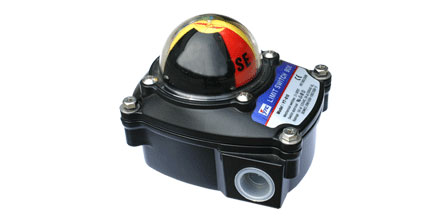

YT-810 Rotary Position Indication

Features

  • Weather proof ITS 100 series primary a rotary position indication device designed to integral valve and NAMUR rotary actuator with a variety of mounting options, internal switch choices and configurations.
  • Rigid and Compact Body design constructed from Aluminum Alloy Die-Casting capable of operating even in arduous conditions.
  • Dome Position Indicator constructed from high impact resistance polycarbonate material which offers instant visual recognition of valve position up to 50 meters.
  • Easy Cam set.

Specifications

Item Type
Mechanical Switch
Enclosure Protection
Weather proof, IP67
ngress Protection
IP67
Coating
Epoxy-polyester inside and outside against corrosion, Special coating as option
Ambient Temp
-20˚C~+85˚C, Higher temperature on request
Cable entry
2-1/2″ NPT, 2-M20, 2-1/2″ PF on request
Terminal
8 terminals strips (6 for switches, 2 for solenoid connection)
Position monitoring indicator
0~90° Yellow-Open / Red-Close (Dome)
Switches
2 X SPDT Mechanical switches(form C)
Mounting bracket
VDI/VDE 3845, NAMUR
